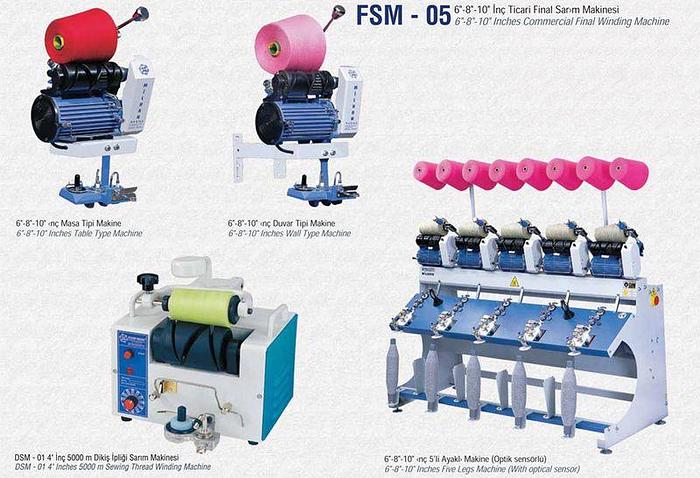

Milhan Makina cone to cone winding machine, FSM05 (New)

Milhan Makina cone to cone winding machine, FSM05 (New)

Contact us for price

Description

UTML Ltd, Chantry House, Chantry Drive, Leeds, LS29 9HU United Kingdom *** This is a new machine manufactured to customers own specification *** - FSM-06 is a new model and has inverter speed control (electronic) - Able to reach 1000 m/mint. (according the yarn quality) - Has start stop & sensor in each heads - Cone holders are aluminium. - FSM-05 older model - speed adjust by belt plley system - Cone holders are plastic (Over time these will start to wear) - Now all market usualy prefer FSM-06 as it is comparable to German and Italian versions, however FSM-05 is still a very reliable winder (But a bit cheaper).

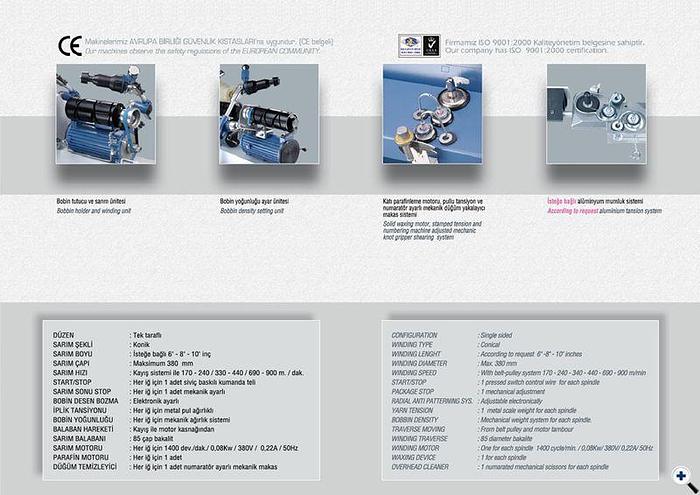

Specifications

ManufacturerMilhan Makina (Turkish)
ModelFSM05
ConditionNew
Stock NumberE1-FSM05

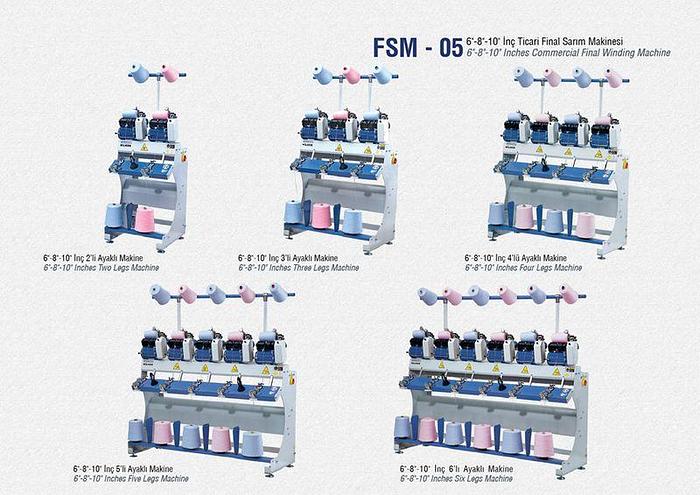

Size2 to 6 Spindles
MakeMilhan Makina
CofigurationSingle Sided
Input yarn creel1 per spindle (Creel shelf)
Drive1 independent motor per spindle
Winding typeConical or Parallel
Winding lengthOptional length 6” - 8” - 10”
Winding diameterMaximum 320mm
Winding speedMaximum 900m/m
Winding speed controlVariable by changing the belt between the two pullies
Drum movementBelt Driven
Start/ stopMoveable switch press control wire
Package stopDesired cone diameter size stop - Adjusted mechanically
Radial anti patterning sysElectronically Adjusted
Cone densityFor each spindle – Adjustable mechanical metal scale weight system
Winding traverse80mm Diameter Bakalite
Winding motorFor each spindle 1500rpm/min/0.12Kw/ 380V / 2.22A/50Hz
Waxing motor1 for each spindle
Slub catcher1 mechanically adjustable scissor system for each spindle
Delivery4 weeks after order confirmation
