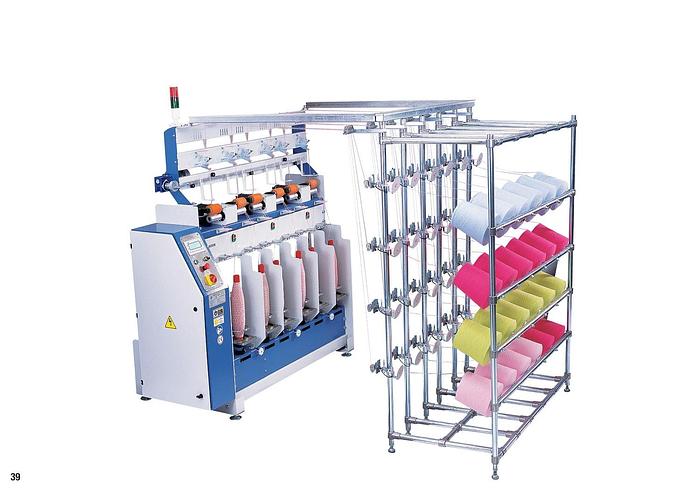

Twisting / Fancy Yarn Twisting Machine for 6 input yarns (New)

Description

Twisting / Fancy Yarn Twisting Machine for 6 input yarns (New) Make: Turkey Guide Price (per 8 Spindles): £19,500 wear out left and right swing between the weight balls of the yarn. 1 x for block and tackle motor 1 x for spindle motor Workspace trace-programme Spindle cycle adjustment Twist number adjustment Adjustment of yarn length and diameter on cops Separate adjustment for up and down speed of block-and-tackle S” and “Z” twisting options Half movement facility for trials For trials – please send cones of yarn and yarn samples etc

Specifications

Manufacturer	Turkey (Milhan Makina)
Condition	New
Stock Number	E4-BM-01
Size	Multiples of 6 – 8 Spindles
Configuration	Single Sided
Winding type	Twisting / Fancy Twisting
No. of spindles	6 – 8 spindles

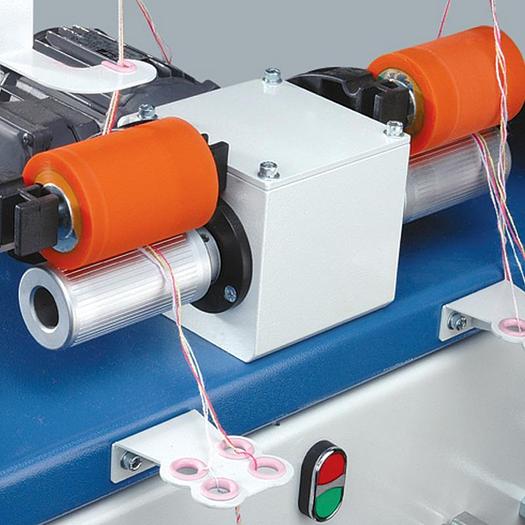

Feeding motor	For each two spindles 1400rpm / min, 0.12Kw / 380v / 0.08A / 50Hz
Spindle motor	For each two spindles 2800rpm / min, 0.55Kw / 380v / 3.2A / 50Hz
Block and tackle motor	1 with redactor at the machine 1400rpm / min, 0.5Kw / 380v / 2.8A / 50Hz

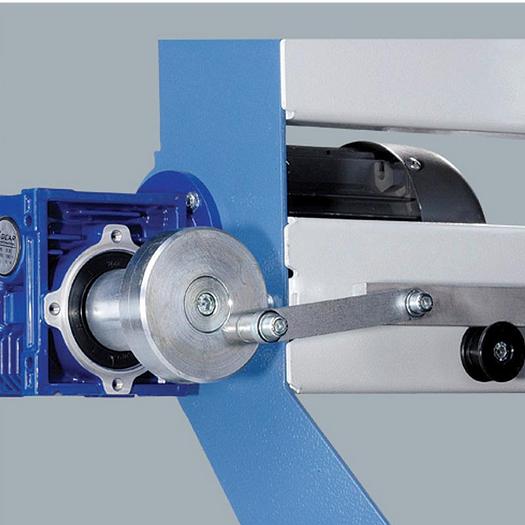

Auxilliary motor	Redactored engine that provides continuous eccentric, mechanical motion against
Inverter	1 x for feeding motors
Spindle cycle	Maximum 6000 cycle/minute
Yarn feeding speed	Maximum 150m/minute
No. of twisting turns	Maximum 350 turns

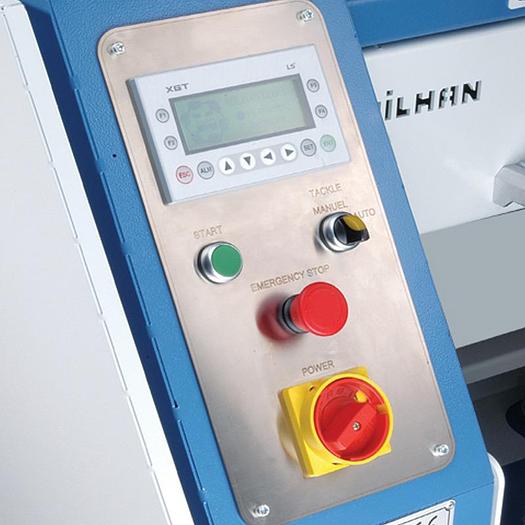

Machine control	PLC touch screen control unit (in both Turkish and English language)
Start / stop	One for each 2 spindles (Red and green LED button system)
Creel	Opposite the machine for each twisting spindle

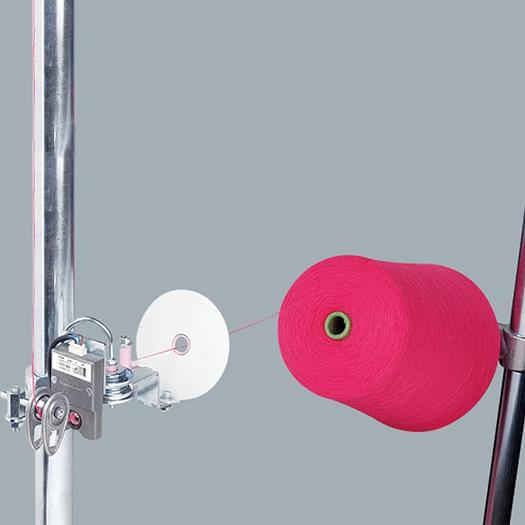

Bobbin creel	For each spindle the creel offers 5 input yarn capacity

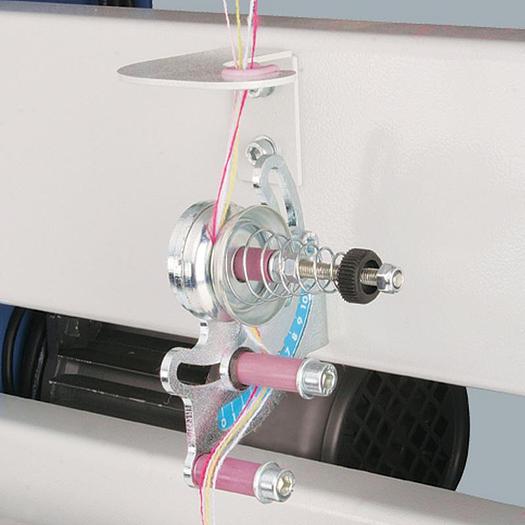

Winding yarn tension	Metal scale weights for each yarn
Yarn break sensor	1 x sensor for each yarn on creel

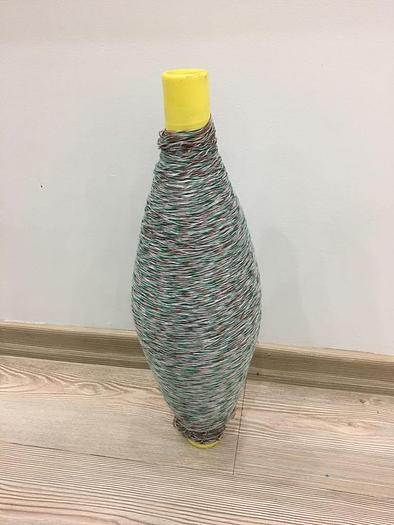

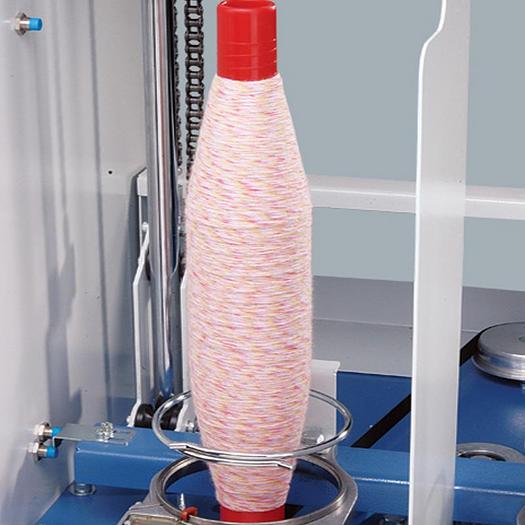

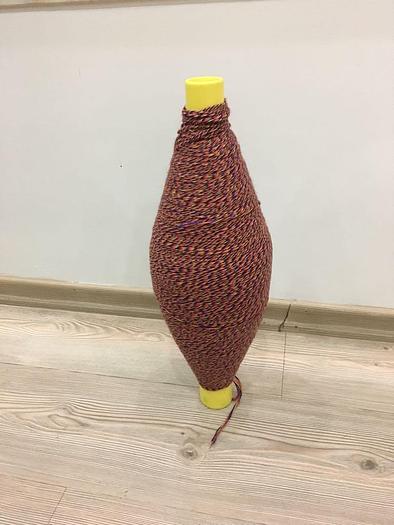

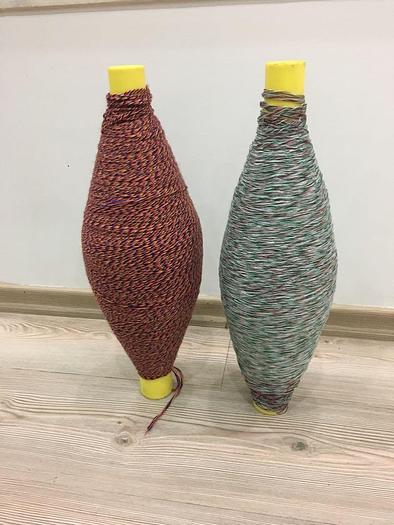

Output package/cop length	450mm
Spindle ring diameter	170 mm
Delivery	4 weeks after order confirmation
