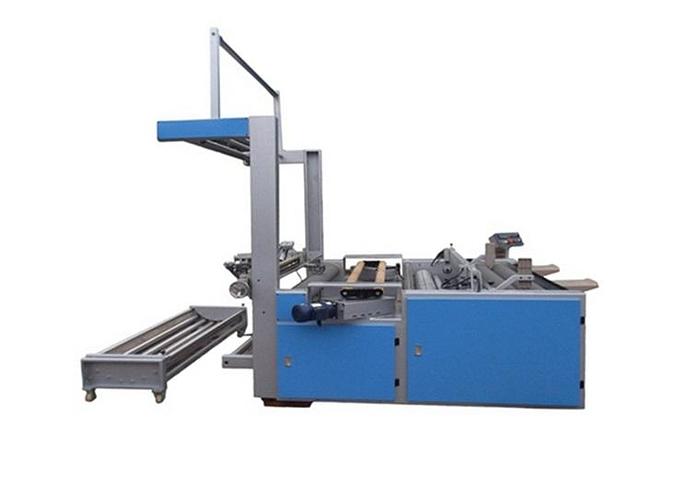

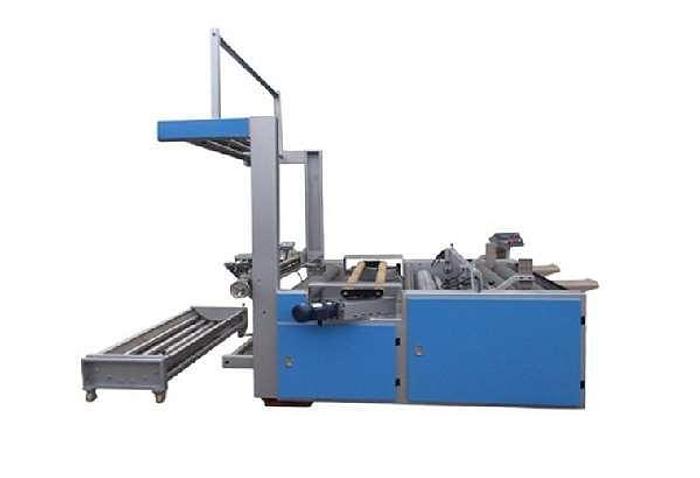

Ultrasonic Fabric Cutting Machine
Ultrasonic Fabric Cutting Machine
Contact us for price
or
Call +44 797 932 0652
Description
-USCM Ultrasonic Fabric Cutting Machine New machines offered to European manufacturers only) M2-USCM Ultrasonic Fabric Cutting Machine is used for a wide range of fabrics, especially for polyester, viscose, etc. This machine can be used to trim fabric selvedge or cut fabric into stripes. Can be synchronized with other production operation. Dimensions (LxWxH) 2786 x 2620 x 2820 mm (For 1.8m models only) 5) Waste collection after cutting. 6) Available for different Fabric Input and Output Presentation, like plait to roll, roll to roll etc. 7) Full Width Fabric Inspection. 8) This machine could be designed as HEAT CUTTING OR LASER CUTTING too . More photographs available on request

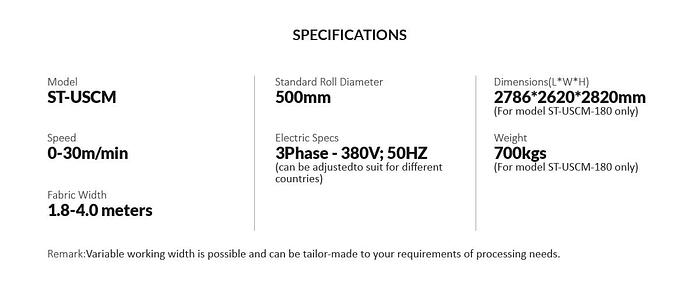

Specifications
| Manufacturer | Chinese |
| Condition | New |
| Stock Number | I6-USCM |
| W. width | 1800 – 4000mm |
| Chinese model | ST-USCM |
| Speed | 30m/min (Max) |
| Fabric width | 1.8 – 4.0m |
| Roll diameter | 500mm (Standard) |
| Electric specs | 3 Phase – 38V; 50Hz |
| Weight | 700kgs (For 1.8m models only) |
| 1) end of fabric roll stop sensor | Allow for next roll joining, continuously from one piece of fabric to next. |
| 2) accurate length counting | Counting error 0.1m/km. |
| 3) consistent roll output | Roll hardness adjustable. |
| 4) perfect edge alignment & accurate selvedge cutting | Special device to make the cutting error +/-5mm. |
| Delivery | 2 Months from receipt of order |
