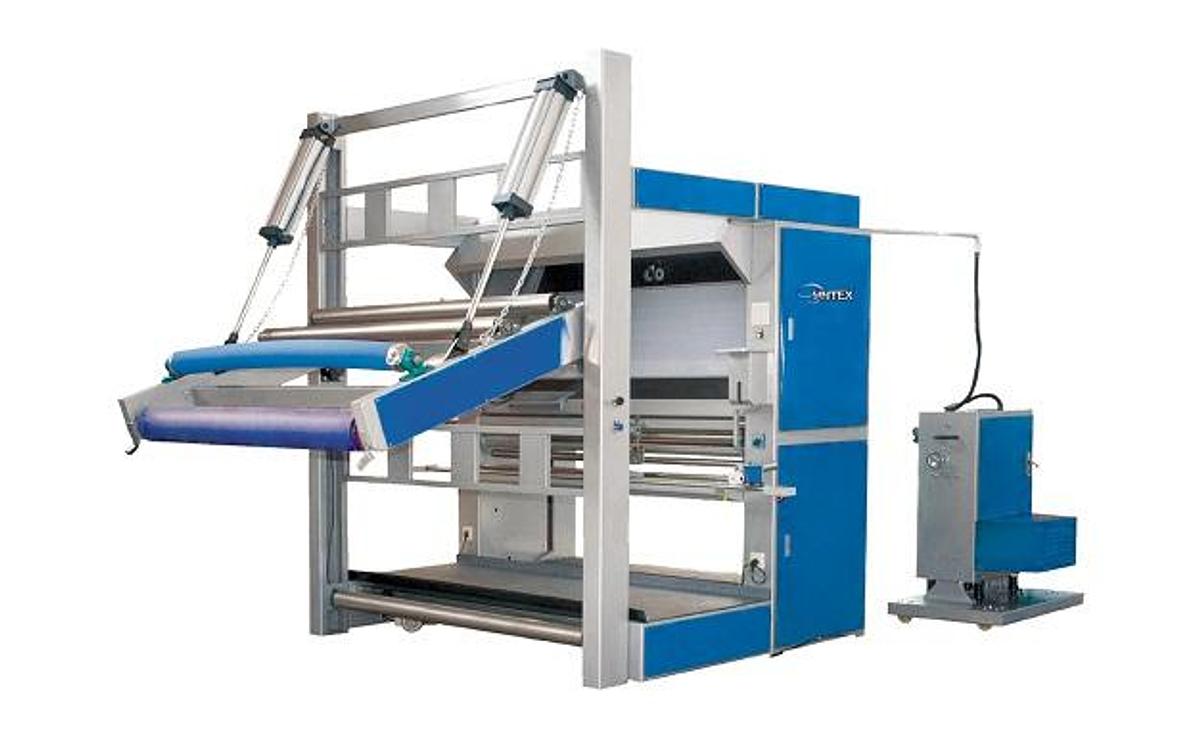

Inspection, Unwinding and Fabric Winding machine
Inspection, Unwinding and Fabric Winding machine
Contact us for price
or
Call +44 797 932 0652
Description
Inspection, Unwinding and Fabric Winding machine (Batch, Plait, Fabric Roll)
Specifications
| Manufacturer | Chinese |
| Condition | New |
| Stock Number | I7-BM-02/03/04/05 |
| W. Width/Size | 1800 - 4000mm |
| Chinese Model | ST-BM-02 |
| Weight | 1300kgs |
| Speed | 5 - 40 m/min (Standard) |
| Fabric Width | 1.8-4.0 meters |
| Max.Un-winding Diameter | 1800mm |
| Electric Specs | 3 PHASE 380V 50HZ |
| Dimensions (L x W x H) | 4800 x 3100 x 3000mm |
| Max.Re-winding Diameter | 1800mm |
| Warranty | 1 year (Extension is available) |
| Status | Made to order |
| Delivery | 2 Months from receipt of order |
