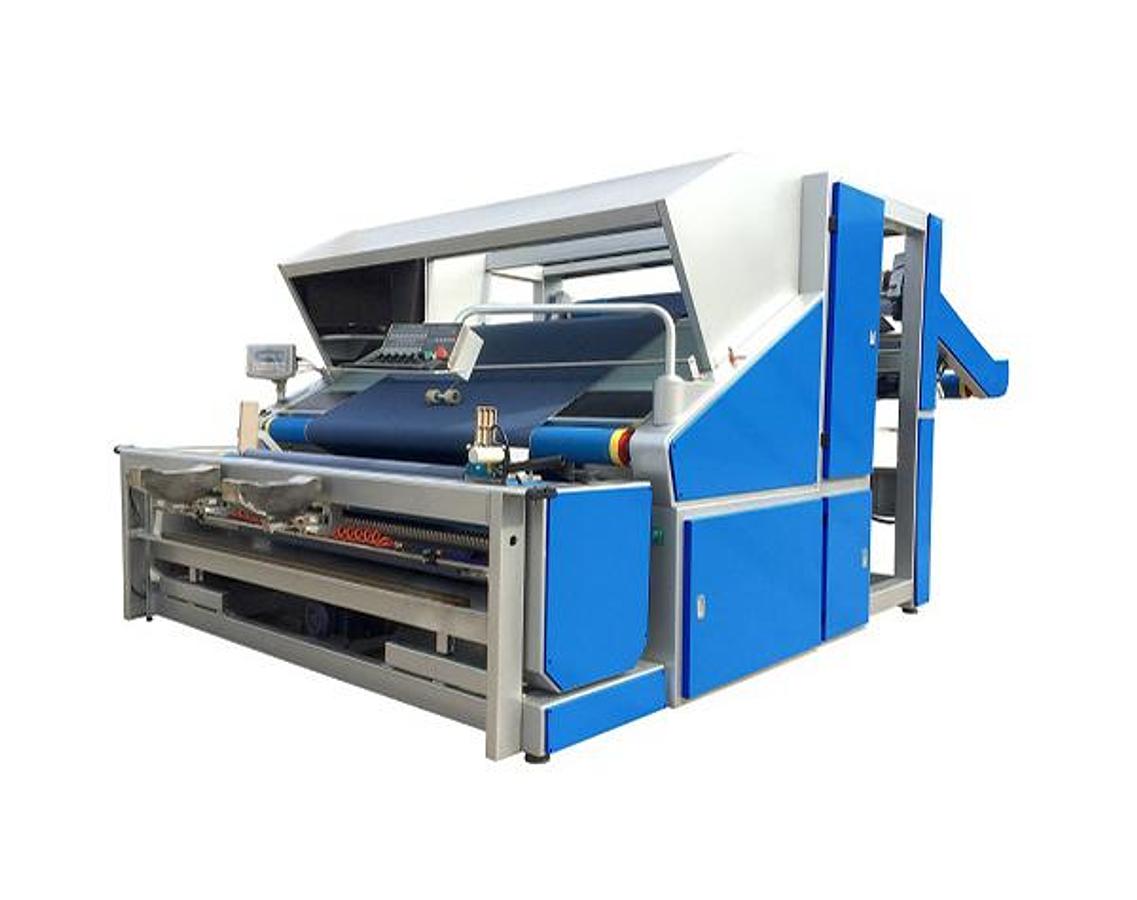

Knitted Fabric Inspection Machine
Knitted Fabric Inspection Machine
Contact us for price
or
Call +44 797 932 0652
Description
Knitted Fabric Inspection Machine
Specifications
| Manufacturer | Chinese |
| Condition | New |
| Stock Number | I7-KFIM |
| W. Width/Size | 1.8-4.0m |
| Chinese Model | ST-KFIM |
| Speed | 5-40m/min |
| Fabric Width | 1.8-4.0m |
| Standard Roll Diameter | 500mm |
| Weight | 1650kgs |
| Dimensions | 4300x2700x2000mm |
| Warranty | 1 year (Extension is available) |
| 1) Auto Tensionless Checking | With unique mechanical and electrical device combination for making fabric |
| 2) Full Width Fabric Inspection | With 60 degree fixed angle inspection screen. |
| 3) Curled Edges Controlling | With scroll roller system and de-curling system for perfect generation. |
| 4) Accurate Length Counting | Counting error0.1m/km. |
| 5) Accurate Fabric Edge Controlling | Edge alignment error 6mm |
| 6) Consistent Roll Output | Roll hardness adjustable. |
| Status | Made to order |
| Delivery | 2 Months from receipt of order |
