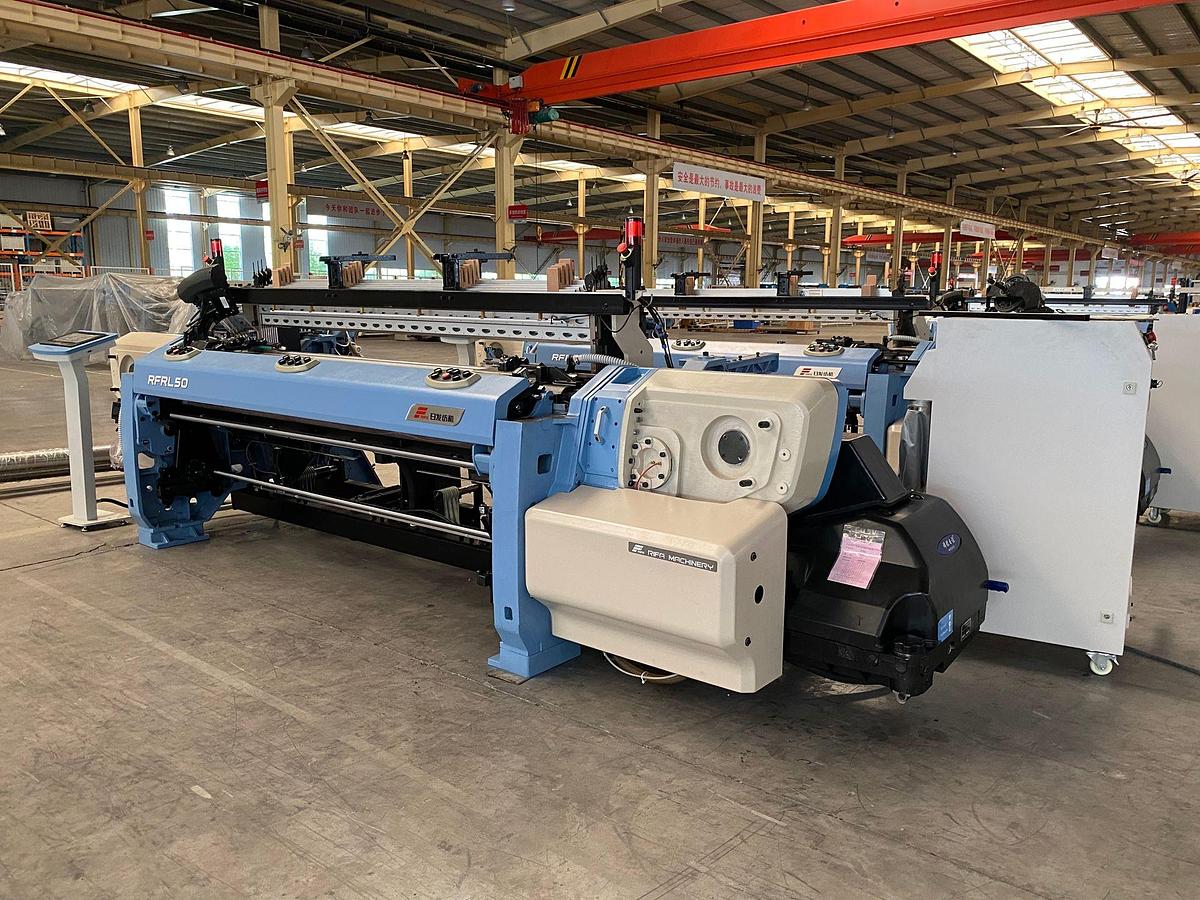

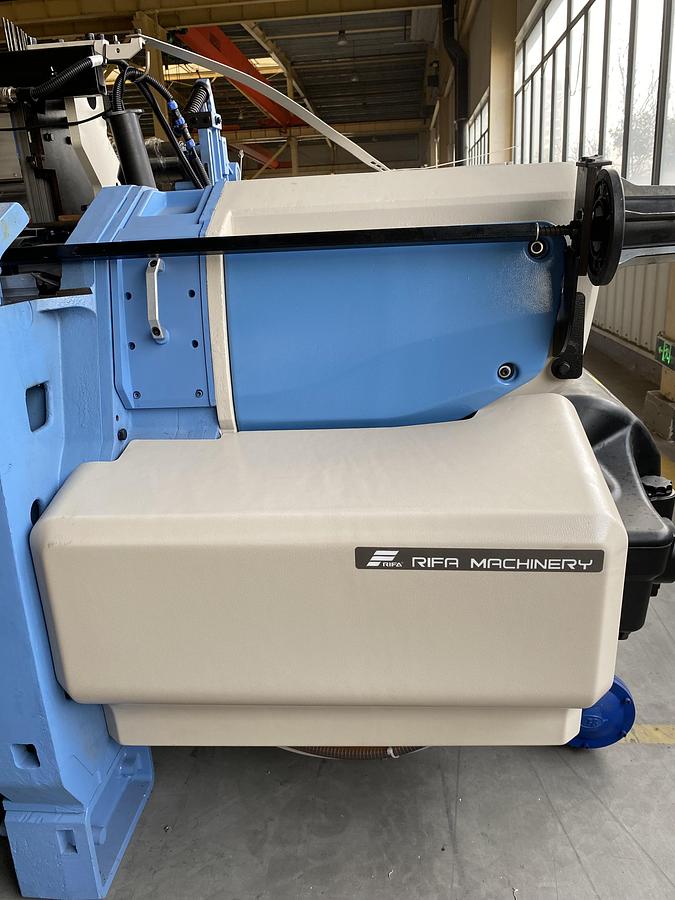

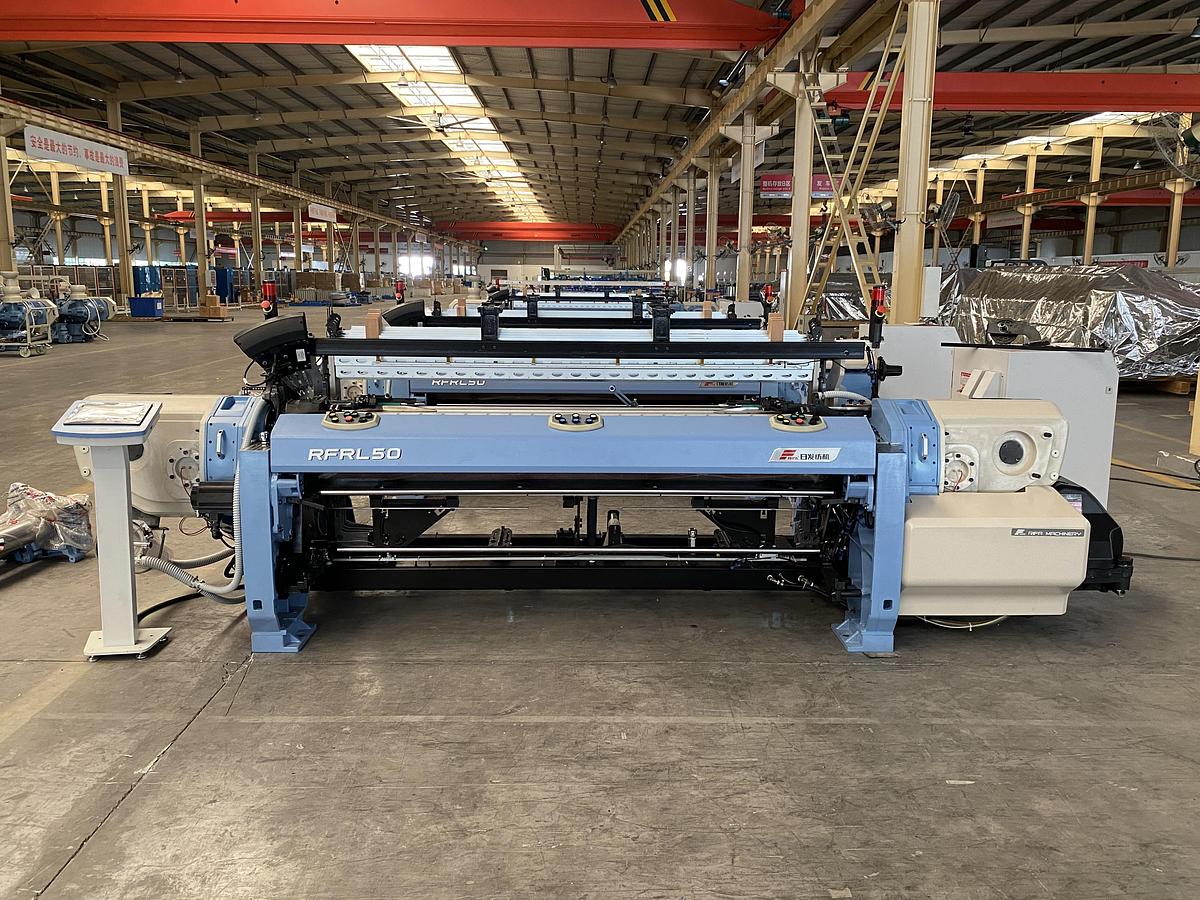

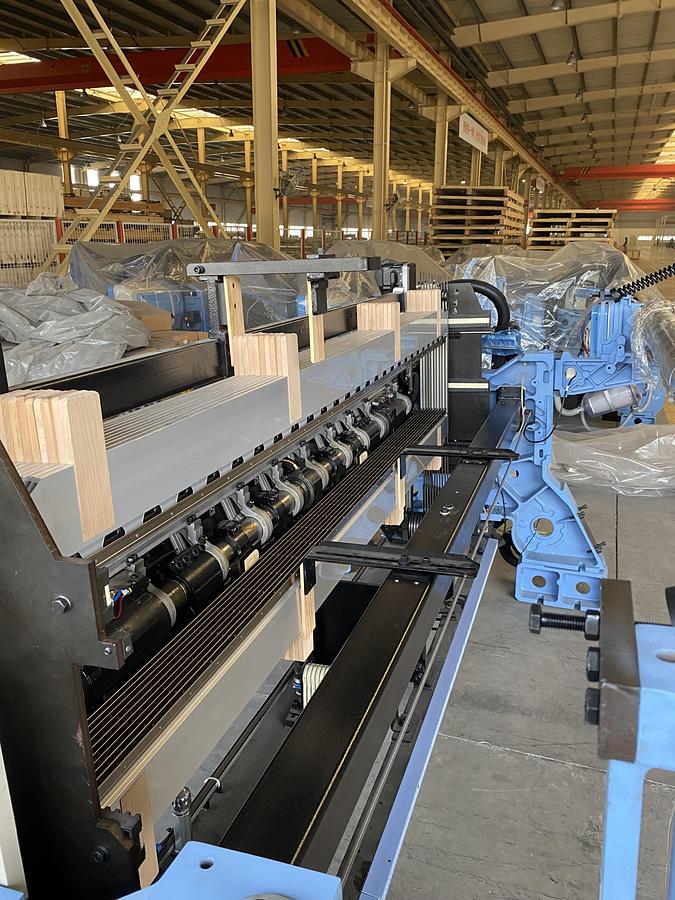

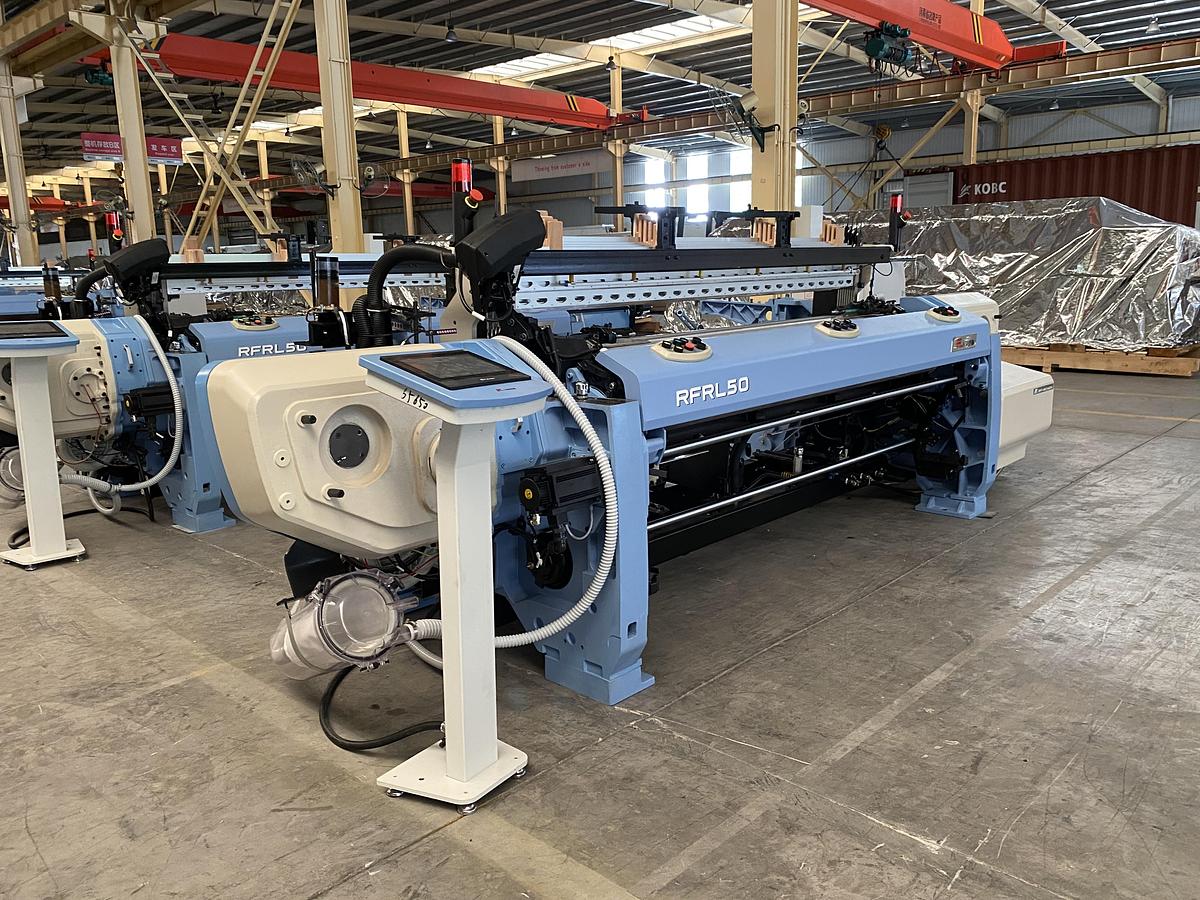

Rifa High Speed Rapier Loom
Rifa High Speed Rapier Loom
Contact us for price
or
Call +44 797 932 0652
Description
Rifa High Speed Rapier Loom
Specifications
| Condition | New |
| Stock Number | G2-RFRL50 |
| Guide Price | £37,000 |
| 190、210、220、230、240、250、280、 Nominal | 190、210、220、230、240、250、280、 |
| 6～-70cm Width reduction(including false selvage) | +6～-70cm |
| Nm200-Nm3(Ne120-Ne1.8) Spun yarn | Nm200-Nm3(Ne120-Ne1.8) |
| 10dtex～1500dtex Filament | 10dtex～1500dtex |
| Warp yarn | sizing yarn, non-sizing yarn, |
| 750转/分 Designed speed | 750rpm |
| Practical speed | 500～650rpm |
| Max insertion rate | 1520m/min |
| 1～8色，可同时织造2根纬纱 Selector | 1-8 color, same time may insert 2 picks |
| Weft Accumulator | electronic |
| Weft cutter | mechanical |
| 1000mm、Ф800mm Веаm flаngе dіа | Ф1000mm、Ф800mm |
| Leno device | electronic |
| Temple | LH & RH independent |
| 6列或8列电气触点式停经装置 Warp stop | 6 or 8 lines electric touch-type |
| Weft stop | electric piezoelectric sensor, with double pick |
| 4色灯显示 Stop display | show stop reason on screen,multi-function |
| CPU控制系统，能控制、监控、自动诊断、 Control | multiple function CPU control system. with |
